Rigorous, laboratory-grade spatial inspection auditing and tolerance certification for aerospace, defense, and high-pressure process equipment.

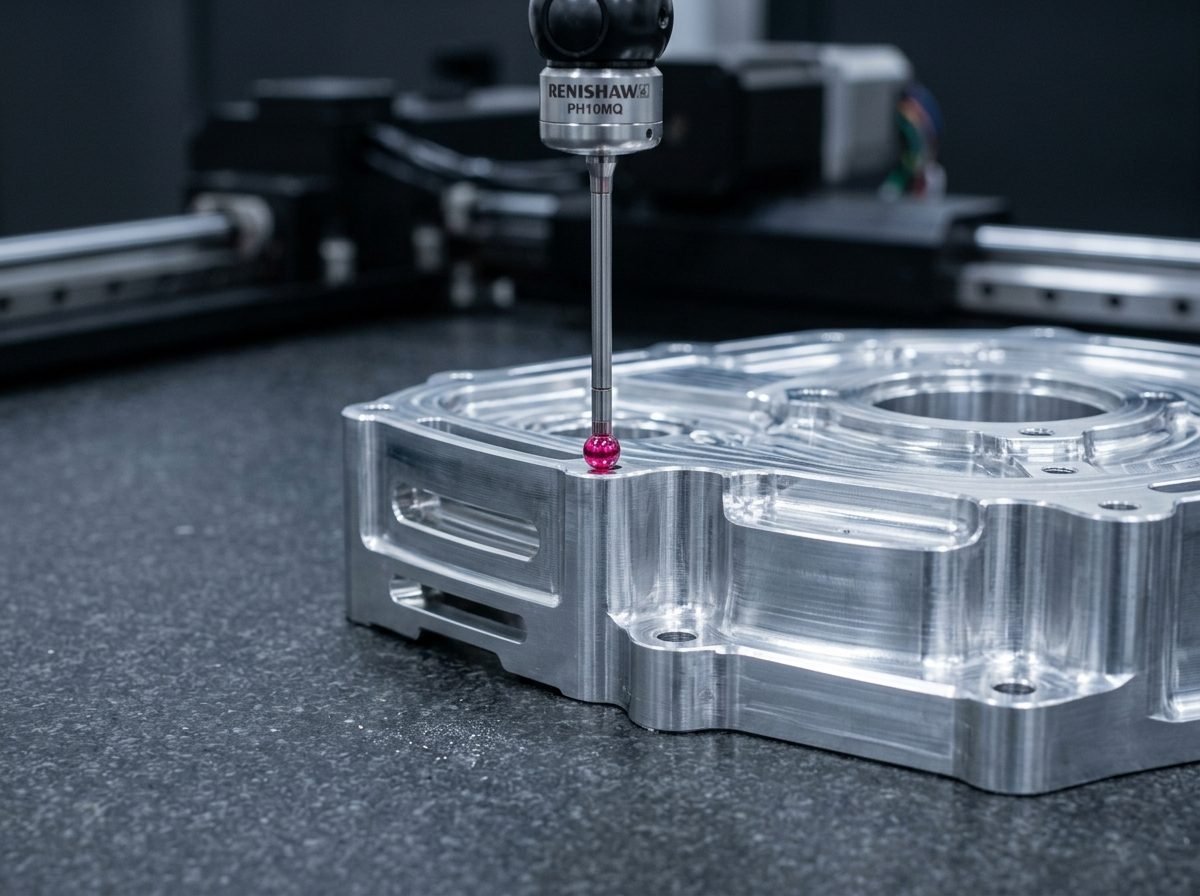

We utilize a high-precision 3D Coordinate Measuring Machine (Make: Accurate) with a measuring capacity of 1500 × 1000 × 800 mm (X/Y/Z). Equipped with a Renishaw PH10M motorized probe head and TP20 touch-trigger probe system, it enables automated geometric dimensioning & tolerancing (GD&T) validation.
Accuracy: MPEE = 2.5 + L/350 µm deviation limit.
Capability: 3D coordinate scanning, position & profile inspection, flatness, concentricity, runouts, and parallelism verification.

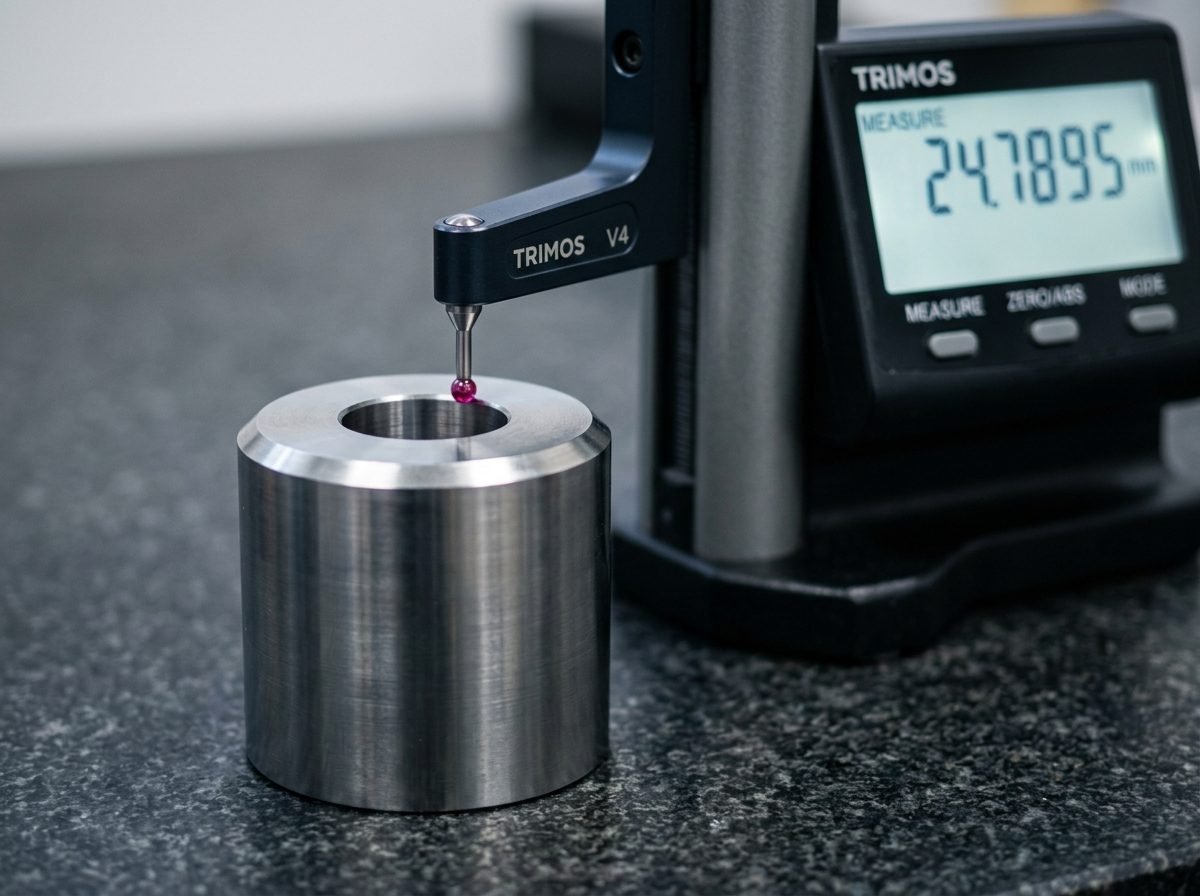

We utilize a Trimos 2D digital height gauge for high-precision height measurements, feature location verification, and datum setting, reinforcing our comprehensive quality assurance framework.
MADECON operates under strict NABL accreditation guidelines, providing certified documentation and coordinate reports. We act as independent third-party auditors for defense subcontractors.
We generate complete spatial coordinate scan profiles, including contact tooth pattern analysis for double-helical gear sets, dimensional runouts, concentricity mappings, and profile geometry charts. These independent certificates serve as absolute validation before industrial deployment.
MADECON makes contract part verification simple. Ship your machined components directly to our temperature-controlled metrology lab in Powai. We will evaluate your parts, run full-dimensional audits, and provide NABL-traceable coordinate inspection certificates. We will share a custom quote based on your part drawings, quantities, and the specific kind of inspection required.
Parts requiring NABL dimensional auditing or 3D coordinate scanning must be delivered directly to our Powai laboratory facility.
MADECON Metrology Department
A10 New Sonal Industrial Estate, Saki Vihar Road,
Powai, Mumbai - 400072, Maharashtra, India.
If your Quality Assurance protocol requires physical witness inspection or live coordinate validation on our Accurate CMM or Trimos height gauge, please notify us in your request. We will accommodate and pre-book your engineers' session.
High-resolution photo validation showcasing our actual CMM machine and digital height gauge booked for our Powai lab.
Our temperature-controlled metrology laboratory is equipped with high-precision calibrated measuring instruments.
